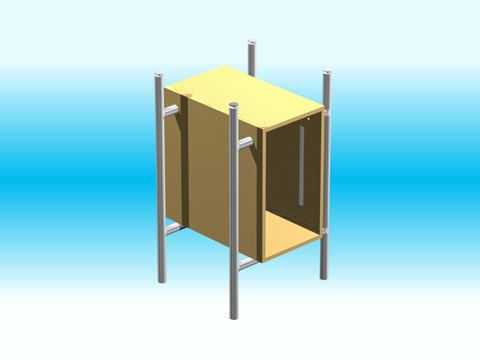

RAPIC Single Base Unit. Standard unit has solid back and sides with open front. Overall height of unit is 600mm x 350mm wide x 600mm deep. Includes internal pre fitted shelf strip. Available in maple, oak or cherry effect. Other finishes available on request.

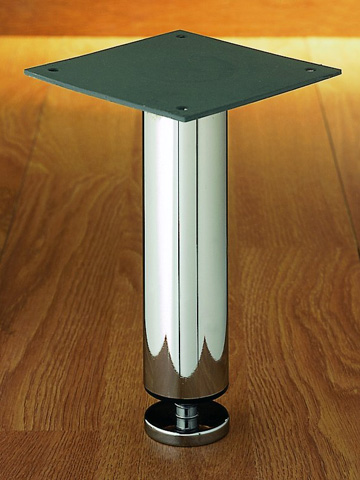

38mm counter leg with W198 adjustable foot providing up to 30mm height adjustment. 100mm square top plate. Height 150mm or 250mm when closed or other heights made to order. Chrome. Satin Chrome.

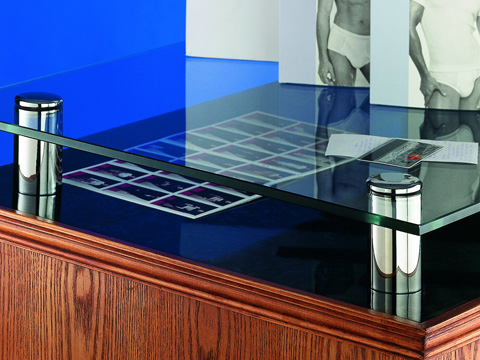

Glass counter top or front panel support pillar. Available as 38mm or 51mm diameter pillar 76mm high with domed top fixing or other heights made to order. Bolts through counter top from underside. Requires a 14mm diameter fixing hole in the glass and a 14mm diameter hole in the counter. Please advise glass thickness and counter thickness when ordering. Polished Brass. Chrome. Satin Chrome. Stainless Steel.
Security plunger lock fits into 25mm diameter hole drilled into front glass. Can be supplied either to pass or to differ from 80 differs available. Also available with standard centre (W465) with 10 differs available. This lock is not suitable for use with Heavislide. Chrome. Satin Chrome.
Nylon wheel rollers 150mm long hook together for glass to slide on in W24 or W225 bottom tracks. The wheels should fill 75% of the bottom track to work effectively.
Medium round finger pull fits into 38mm diameter hole drilled in glass. 30mm finger hole. Polished aluminium. Anodised in gold, silver or bronze or black powder coated.
Large round finger pull fits into 51mm diameter hole drilled in glass. 38mm finger hole. Polished aluminium. Anodised in gold, silver or bronze or black powder coated.
Clear plastic edging clips onto glass panel to protect the edge. Supplied in 2m or 4m stock lengths or cut lengths up to 4m.
Round finger pull fits into 29mm diameter hole drilled in glass. 18mm finger hole. Polished aluminium. Anodised in gold, silver or bronze or black powder coated.
Medium round finger pull fits into 38mm diameter hole drilled in glass. 25mm finger hole. Polished aluminium. Anodised in gold, silver or bronze or black powder coated.
