W101

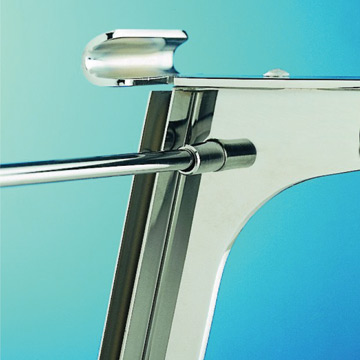

Tie rod for screens. Provides the necessary strength and support between W52 and W504 screen pillars. Use is recommended for screens up to 1m long and essential for screens over 1m long. Supplied cut to required length. Chrome. Satin Chrome.
Tie rod for screens. Provides the necessary strength and support between W52 and W504 screen pillars. Use is recommended for screens up to 1m long and essential for screens over 1m long. Supplied cut to required length. Chrome. Satin Chrome.

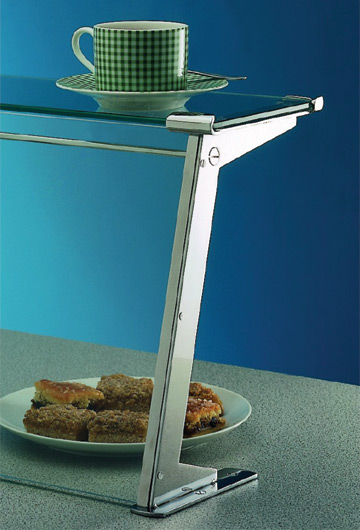

Sloping front pillar with top shelf. Available for 254mm high front glass with 152mm deep top shelf or for 305mm high front glass with 178mm deep top shelf. 148mm x 35mm fixing plate . Use of the W101 tie rod is recommended. Available as left or right hand end. Chrome. Satin Chrome.
Corner elbow 90deg or 135deg in 25mm, 32mm, 38mm, 51mm, 63mm or 76mm tube supplied with liner joints. Polished Brass. Chrome. Satin Chrome. Stainless Steel.
Footrail pillar with diagonal stay 180mm high for 38mm, 51mm, 63mm or 76mm tube. 75mm diameter fixing plate, 60mm diameter back plate. Polished Brass. Chrome. Satin Chrome.
Ball top guard rail pillar for screw fixing. Pillar is 38mm high overall and accepts 6mm diameter rod. Available as end, centre, 90? or 135? corner. 25mm diameter fixing plate. Polished Brass. Chrome.
Cranked handrail bracket with flat top plate 50mm x 25mm. 75mm projection to centreline of bracket. 63mm diameter fixing plate. Polished Brass. Chrome. Satin Chrome.
Through ring footrail pillar for 38mm, 51mm, 63mm or 76mm tube, 180mm high. 75mm diameter fixing plate. Polished Brass. Chrome. Satin Chrome.
Tall ball top guard rail pillar for screw fixing. Pillar is 75mm high overall and accepts 13mm diameter tube. Available as end, centre, 90? or 1350 corner. 30mm diameter fixing plate. Polished Brass. Chrome. Satin Chrome.
Traditional handrail bracket for 38mm tube (138mm projection) or 51mm tube (150mm projection). 75mm x 75mm fixing plate. Polished Brass. Chrome. Satin Chrome.
Traditional footrail pillar for 38mm tube (195mm high overall/180mm high overall tube) or 51mm tube (195mm high). 75mm x 75mm fixing plate. Polished Brass. Chrome. Satin Chrome.
